Epplus 図形の描画について

Epplusを使って「図形の描画」と「列の非表示」を個別での実装は上手くいくのですが、
図形の描画をしている箇所と非表示する列の位置が重なる場合、
図形の幅や位置が変わってしまいます。
どうしたらいいでしょうか？

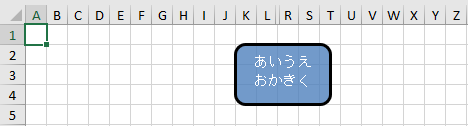

「M列」～「Q列」を非表示にすると

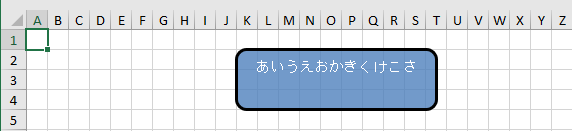

図形の右端（S列とT列）の位置を固定にして描画をしたいのですが、
図形のサイズが非表示に伴い変わってしまいます。

			// 出力ファイルの準備（実行ファイルと同じフォルダに出力される）
			FileInfo newFile = new FileInfo("result.xlsx");
			if (newFile.Exists)
			{
				newFile.Delete();
				newFile = new FileInfo("result.xlsx");
			}

			// Excelファイルの作成
			using (ExcelPackage package = new ExcelPackage(newFile))
			{
				// ワークシートを1枚追加
				ExcelWorksheet sheet = package.Workbook.Worksheets.Add("シート名");

				// セル幅
				for (int i=1; i<200; i++)
				{
					sheet.Column(i).Width = 3;
				}

				ExcelShape shape = sheet.Drawings.AddShape("Description", eShapeStyle.RoundRect);
				shape.SetPosition(1, 0, 10, 0);
				shape.SetSize(200, 60);
				shape.Text = "あいうえおかきくけこさ";
				shape.Fill.Style = eFillStyle.SolidFill;
				shape.Fill.Color = Color.White;
				shape.Fill.Transparancy = 20;
				shape.Border.Fill.Style = eFillStyle.SolidFill;
				shape.Border.LineStyle = eLineStyle.Solid;
				shape.Border.Width = 2;
				shape.Border.Fill.Color = Color.Black;
				shape.Border.LineCap = eLineCap.Round;
				shape.TextAnchoring = eTextAnchoringType.Top;
				shape.TextVertical = eTextVerticalType.Horizontal;
				shape.TextAlignment = eTextAlignment.Center;
				shape.TextAnchoringControl = false;

				// 列非表示
				for (int i=13; i<18; i++)
				{
					sheet.Column(i).Hidden = true;
				}

				// 保存
				package.Save();
			}

自己解決したソース


using System;
using System.Diagnostics;
using System.IO;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

using System.Drawing;
using OfficeOpenXml;
using OfficeOpenXml.Drawing;

using OfficeOpenXml;

namespace EppluseTest
{
	public partial class Form1 : Form
	{
		public Form1()
		{
			InitializeComponent();
		}

		private void Form1_Load(object sender, EventArgs e)
		{

		}

		private void Button1_Click(object sender, EventArgs e)
		{

			string filePath1 = @"C:\Debug\SampleBook.xlsx";
			string filePath2 = @"C:\Debug\SampleBook_a.xlsx";

			File.Delete(filePath2);
			File.Copy(filePath1, filePath2);

			FileInfo excelFile = new FileInfo(filePath2);

			using (var inputFile = new ExcelPackage(excelFile))
			{
				var sheet = inputFile.Workbook.Worksheets["work001"];
				ExcelShape shape = sheet.Drawings.AddShape("test001", eShapeStyle.RoundRect);
				shape.SetPosition(0, 7, 37, 10);
				shape.SetSize(500, 30);
				shape.Text = "あいうえおかきくけこ";
				shape.Fill.Style = eFillStyle.SolidFill;
				shape.Fill.Color = Color.White;
				shape.Fill.Transparancy = 20;
				shape.Border.Fill.Style = eFillStyle.SolidFill;
				shape.Border.LineStyle = eLineStyle.Solid;
				shape.Border.Width = 2;
				shape.Border.Fill.Color = Color.Black;
				shape.Border.LineCap = eLineCap.Round;
				shape.TextAnchoring = eTextAnchoringType.Center;
				shape.TextVertical = eTextVerticalType.Horizontal;
				shape.TextAlignment = eTextAlignment.Center;
				shape.TextAnchoringControl = false;

				sheet = inputFile.Workbook.Worksheets["work002"];
				sheet.Column(45).Hidden = true;
				shape = sheet.Drawings.AddShape("test002", eShapeStyle.RoundRect);
				shape.SetPosition(0, 7, 36, 10);
				shape.SetSize(500, 30);
				shape.Text = "あいうえおかきくけこ";
				shape.Fill.Style = eFillStyle.SolidFill;
				shape.Fill.Color = Color.White;
				shape.Fill.Transparancy = 20;
				shape.Border.Fill.Style = eFillStyle.SolidFill;
				shape.Border.LineStyle = eLineStyle.Solid;
				shape.Border.Width = 2;
				shape.Border.Fill.Color = Color.Red;
				shape.Border.LineCap = eLineCap.Round;
				shape.TextAnchoring = eTextAnchoringType.Center;
				shape.TextVertical = eTextVerticalType.Horizontal;
				shape.TextAlignment = eTextAlignment.Center;
				shape.TextAnchoringControl = false;

				sheet = inputFile.Workbook.Worksheets["work003"];
				sheet.Column(45).Hidden = true;
				sheet.Column(44).Hidden = true;
				shape = sheet.Drawings.AddShape("test003", eShapeStyle.RoundRect);
				shape.SetPosition(0, 7, 35, 10);
				shape.SetSize(500, 30);
				shape.Text = "あいうえおかきくけこ";
				shape.Fill.Style = eFillStyle.SolidFill;
				shape.Fill.Color = Color.White;
				shape.Fill.Transparancy = 20;
				shape.Border.Fill.Style = eFillStyle.SolidFill;
				shape.Border.LineStyle = eLineStyle.Solid;
				shape.Border.Width = 2;
				shape.Border.Fill.Color = Color.Green;
				shape.Border.LineCap = eLineCap.Round;
				shape.TextAnchoring = eTextAnchoringType.Center;
				shape.TextVertical = eTextVerticalType.Horizontal;
				shape.TextAlignment = eTextAlignment.Center;
				shape.TextAnchoringControl = false;

				sheet = inputFile.Workbook.Worksheets["work004"];
				sheet.Column(45).Hidden = true;
				sheet.Column(44).Hidden = true;
				sheet.Column(43).Hidden = true;
				shape = sheet.Drawings.AddShape("test004", eShapeStyle.RoundRect);
				shape.SetPosition(0, 7, 34, 10);
				shape.SetSize(500, 30);
				shape.Text = "あいうえおかきくけこ";
				shape.Fill.Style = eFillStyle.SolidFill;
				shape.Fill.Color = Color.White;
				shape.Fill.Transparancy = 20;
				shape.Border.Fill.Style = eFillStyle.SolidFill;
				shape.Border.LineStyle = eLineStyle.Solid;
				shape.Border.Width = 2;
				shape.Border.Fill.Color = Color.Magenta;
				shape.Border.LineCap = eLineCap.Round;
				shape.TextAnchoring = eTextAnchoringType.Center;
				shape.TextVertical = eTextVerticalType.Horizontal;
				shape.TextAlignment = eTextAlignment.Center;
				shape.TextAnchoringControl = false;

				inputFile.Save();

				Process.Start(filePath2);

				Close();
			}
		}
	}
}

行動規範の内容に同意します

回答2件

ベストアンサー

c#
1                shape.SetPosition(1, 0, 10, 0);
2                shape.SetSize(200, 60);
3

SetPositionが図形の左上基準なので、難しいですね。
列を隠す分だけSetPositionもずらすことぐらいになるのかなあ。

c#
1                //列非表示
2                var count = 0;
3                for (int i = 13; i < 18; i++)
4                {
5                    sheet.Column(i).Hidden = true;
6                    count++;
7                }
8                shape.SetPosition(1, 0, 10 - count, 0);
