Auth0を使った認証で、ユーザ認証ができず401エラーがでる

以下2つの記事を参考に、Railsでのユーザ認証機能を追加しています。

参考にしている記事
https://auth0.com/blog/building-secure-apis-with-rails-6-and-auth0/

https://qiita.com/pon0204/items/4de8c4b55b348a4c0781#rails-%E3%82%A2%E3%83%97%E3%83%AA%E8%A8%AD%E5%AE%9A-%E9%80%9A%E4%BF%A1%E7%A2%BA%E8%AA%8D

#環境
Mac
Rails 6.0.4

#やりたいこと
curlコマンドで、headerにtokenを載せてPOSTリクエストを実行して認証を通したい。

記事では以下の部分でやっていることです。
https://auth0.com/blog/building-secure-apis-with-rails-6-and-auth0/#Create-Authorization-Handlers#Test-it-out

https://qiita.com/pon0204/items/4de8c4b55b348a4c0781#rails-%E3%82%A2%E3%83%97%E3%83%AA%E8%A8%AD%E5%AE%9A-%E9%80%9A%E4%BF%A1%E7%A2%BA%E8%AA%8D

コードはこちらです。

$ curl -H "Content-Type: application/json" -H "Authorization: bearer [ACCESS_TOKEN]" -d '{"title":"タイトル1", "content":"説明1"}' -X POST http://localhost:3000/api/v1/articles

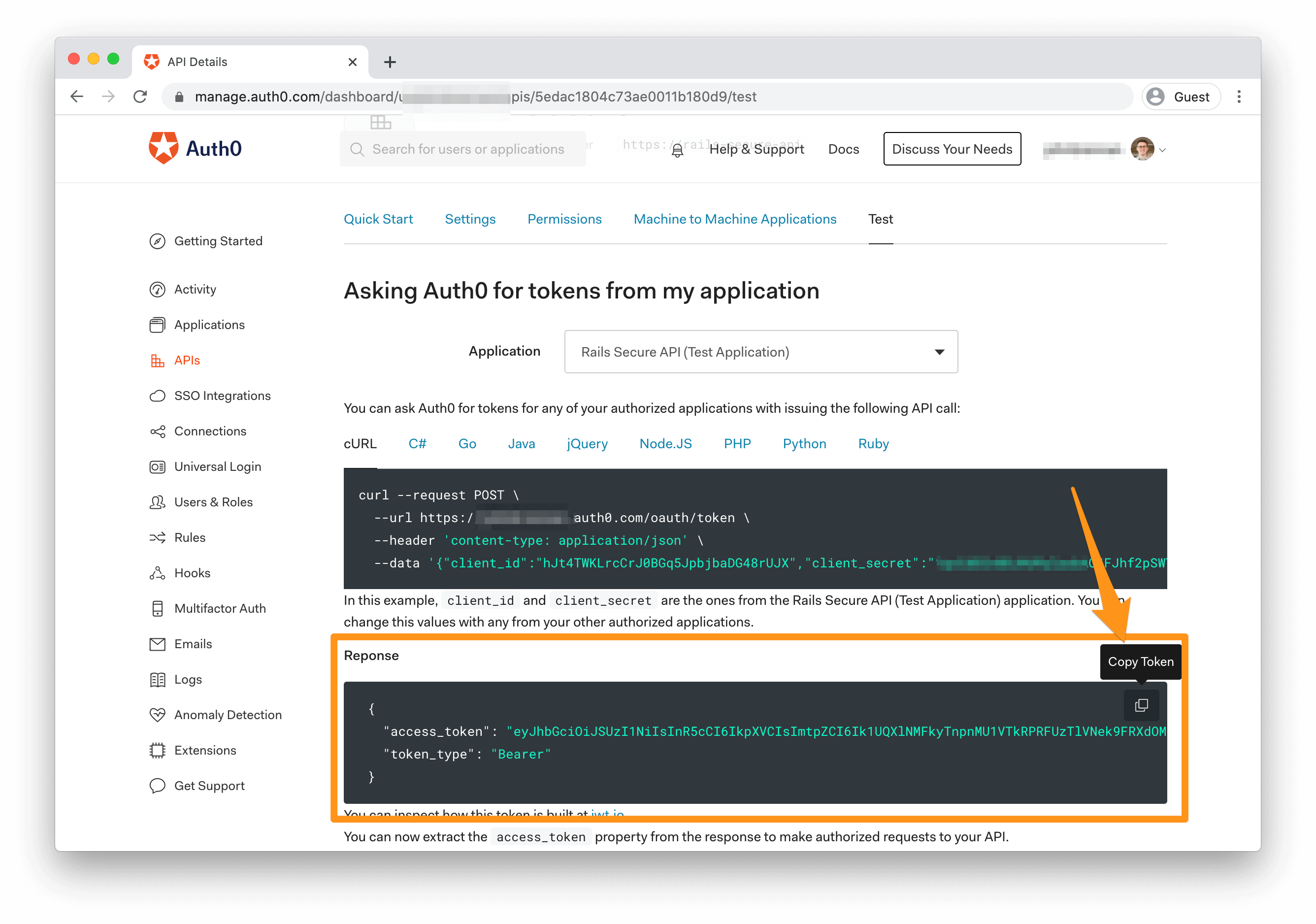

[ACCESS_TOKEN]の部分に以下の部分のToken情報をコピペして使っています。
[ACCESS_TOKEN]の部分には、[]や""を使わずに、貼り付けしています。

https://images.ctfassets.net/23aumh6u8s0i/346OJCiphrtCFAMqCDNhAT/610c50a0f000b57732652d152604c9f7/find-access-token

#エラー内容

コンソール

Uncaught (in promise) Error: Request failed with status code 401
    at createError (createError.js:16)
    at settle (settle.js:17)
    at XMLHttpRequest.handleLoad (xhr.js:62)

ログ

Started POST "/api/v1/articles" for ::1 at 2021-08-15 09:00:47 +0900
   (1.1ms)  SELECT sqlite_version(*)
   (1.3ms)  SELECT "schema_migrations"."version" FROM "schema_migrations" ORDER BY "schema_migrations"."version" ASC
Processing by Api::V1::ArticlesController#create as */*
  Parameters: {"title"=>"タイトル1", "content"=>"説明1"}
Filter chain halted as :authorize_request rendered or redirected
Completed 401 Unauthorized in 681ms (Views: 0.5ms | ActiveRecord: 0.0ms | Allocations: 5725)

４０1エラーなので、認証エラーだというところまでは理解しています。ですが、Token情報はコピペしているので、なぜ認証エラーが出ているのかがわからない状態です。

#やったこと
byebugを使って、気になる部分をデバッグしてみました。
そして気になる部分が

json_web_token.rb
1# app/lib/json_web_token.rb
2require 'net/http'
3require 'uri'
4
5class JsonWebToken
6  def self.verify(token)
7    JWT.decode(token, nil,
8              true, # Verify the signature of this token
9              algorithm: 'RS256',
10              iss: ENV['AUTH0_DOMAIN'],
11              verify_iss: true,
12              aud: ENV['AUTH0_IDENTIFIER'],
13              verify_aud: true) do |header|
14      jwks_hash[header['kid']]
15    end
16  end
17
18  def self.jwks_hash
19    byebug // ここにbyebug
20    jwks_raw = Net::HTTP.get URI("#{ENV['AUTH0_DOMAIN']}/.well-known/jwks.json")　// jwks_rawがnilになる
21    jwks_keys = Array(JSON.parse(jwks_raw)['keys'])
22    Hash[
23      jwks_keys
24      .map do |k|
25        [
26          k['kid'],
27          OpenSSL::X509::Certificate.new(
28            Base64.decode64(k['x5c'].first)
29          ).public_key
30        ]
31      end
32    ]
33  end
34end

jwks_rawがnilになっていることが問題なのかな...?といった感じです。
ENV['AUTH0_DOMAIN']はrails cでもきちんと表示されます。
また、https://XXXXXXX.auth0.com/.well-known/jwks.json　にアクセスするとキチンとJSONは表示されるます。

#コード
実際のコードです。

app/lib/json_web_token.rb

# app/lib/json_web_token.rb
require 'net/http'
require 'uri'

class JsonWebToken
  def self.verify(token)
    JWT.decode(token, nil,
              true, # Verify the signature of this token
              algorithm: 'RS256',
              iss: ENV['AUTH0_DOMAIN'],
              verify_iss: true,
              aud: ENV['AUTH0_IDENTIFIER'],
              verify_aud: true) do |header|
      jwks_hash[header['kid']]
    end
  end

  def self.jwks_hash
    byebug
    jwks_raw = Net::HTTP.get URI("#{ENV['AUTH0_DOMAIN']}/.well-known/jwks.json")
    jwks_keys = Array(JSON.parse(jwks_raw)['keys'])
    Hash[
      jwks_keys
      .map do |k|
        [
          k['kid'],
          OpenSSL::X509::Certificate.new(
            Base64.decode64(k['x5c'].first)
          ).public_key
        ]
      end
    ]
  end
end

app/controllers/secured_controller.rb

ruby
1class SecuredController < ApplicationController
2  before_action :authorize_request
3
4  private
5
6  def authorize_request
7    AuthorizationService.new(request.headers).authenticate_request!
8  rescue JWT::VerificationError, JWT::DecodeError
9    render json: { errors: ['Not Authenticated'] }, status: :unauthorized
10  end
11end

app/services/authorization_service.rb

class AuthorizationService

  def initialize(headers = {})
    @headers = headers
  end

  def authenticate_request!
    verify_token
  end

  private

  def http_token
    if @headers['Authorization'].present?
      @headers['Authorization'].split(' ').last
    end
  end

  def verify_token
    JsonWebToken.verify(http_token)
  end

end

app/controllers/api/v1/articles_controller.rb

module Api
  module V1
    class ArticlesController < SecuredController
      skip_before_action :authorize_request, only: [:index, :show]
      before_action :params_name, only: [:show]

      def index
        articles = Article.all
        users = User.all

        render json: {
          data: {
            articles: articles,
            users: users
          }
        }, status: :ok
      end

      def show
        user = @user
        article = @user.articles.find_by(title: params[:title])

        render json: {
          user: user,
          article: article
        }, status: :ok
      end

      def create
        article = Article.create!(article_params)
        render json: article, status: :created
      end

      def destroy
        article = Article.find(params[:id])
        article.delete
        head :no_content
      end

      private
        def article_params
          params.permit(:title, :content)
        end

        def params_name
          @user = User.find_by(name: params[:user_name])
        end
    end
  end
end

app/controllers/api/v1/users_controller.rb

module Api
  module V1
    class UsersController < ApplicationController
      def show
        user = User.find_by(id: params[:id])
        articles = Article.where(user_id: user.id)

        render json: {
          user: user,
          articles: articles
        }, status: :ok
      end
    end
  end
end

app/config/initializers/wrap_parameters.rb

ActiveSupport.on_load(:action_controller) do
  wrap_parameters format: []
end

app/config/routes.eb

Rails.application.routes.draw do
  namespace :api do
    namespace :v1 do
      root to: "articles#index"
      get "articles/new", to: "articles#new"
      resources :articles, only: [:create, :edit, :update, :destory]
      resources :users, path: "/", param: :name, only: [:show, :create] do
        get "articles/:id", to: "articles#show"
      end
    end
  end
end

Gemfile
記事にしたがって
gem 'dotenv-rails'
gem 'jwt'
gem 'rack-cors'
の3つを追加しました。

source 'https://rubygems.org'
git_source(:github) { |repo| "https://github.com/#{repo}.git" }

ruby '2.7.0'

# Bundle edge Rails instead: gem 'rails', github: 'rails/rails', branch: 'main'
gem 'rails', '~> 6.0.4'
# Use sqlite3 as the database for Active Record
gem 'sqlite3', '~> 1.4'
# Use Puma as the app server
gem 'puma', '~> 4.1'
# Build JSON APIs with ease. Read more: https://github.com/rails/jbuilder
# gem 'jbuilder', '~> 2.7'
# Use Redis adapter to run Action Cable in production
# gem 'redis', '~> 4.0'
# Use Active Model has_secure_password
# gem 'bcrypt', '~> 3.1.7'

# Use Active Storage variant
# gem 'image_processing', '~> 1.2'

# Reduces boot times through caching; required in config/boot.rb
gem 'bootsnap', '>= 1.4.2', require: false

# Use Rack CORS for handling Cross-Origin Resource Sharing (CORS), making cross-origin AJAX possible
gem 'rack-cors'

gem 'jwt' // 追加した部分です

group :development, :test do
  # Call 'byebug' anywhere in the code to stop execution and get a debugger console
  gem 'byebug', platforms: [:mri, :mingw, :x64_mingw]
end

group :development do
  gem 'listen', '~> 3.2'
  # Spring speeds up development by keeping your application running in the background. Read more: https://github.com/rails/spring
  gem 'spring'
  gem 'spring-watcher-listen', '~> 2.0.0'
  gem 'dotenv-rails'　// 追加した部分です
end

# Windows does not include zoneinfo files, so bundle the tzinfo-data gem
gem 'tzinfo-data', platforms: [:mingw, :mswin, :x64_mingw, :jruby]

不足している内容などありましたら、なんでもおっしゃってください。まる2日費やしたのですが、わからなかったので質問させていただきました。
どうぞよろしくお願いいたします。????‍♀️

行動規範の内容に同意します

回答1件

Hey there,

I had (almost) this exact same setup and started getting this same error a few days ago. I was puzzled because everything worked fined until just a few days, but even more puzzled since my deployed apps where working fine, it was only in development or trying to reach the endpoints with Insomnia that I was getting the error.

I know this might not be the solution for your issue, and that you probably already moved on from it but I thought of pointing out that for this particular Auth0 setup the error is more than likely something very mundane.

In my case the issue was that I recently installed Lockbox because I decided to keep my previous bearer token stored on the database and have then encrypted. That was it. The token I was using to try my calls was ciphered, because I was grabbing it directly from the database, completely forgetting about Lockbox.

I debugged this by looking at the logs on the API app and seeing that the tokens coming from Insomnia where different than those coming from the running app making requests.

I reckon most people encountering this error will have some kind of issue relating to the bearer token passing as a misrepresentation.

Hope this helps in the future.

投稿2022/04/25 12:52
